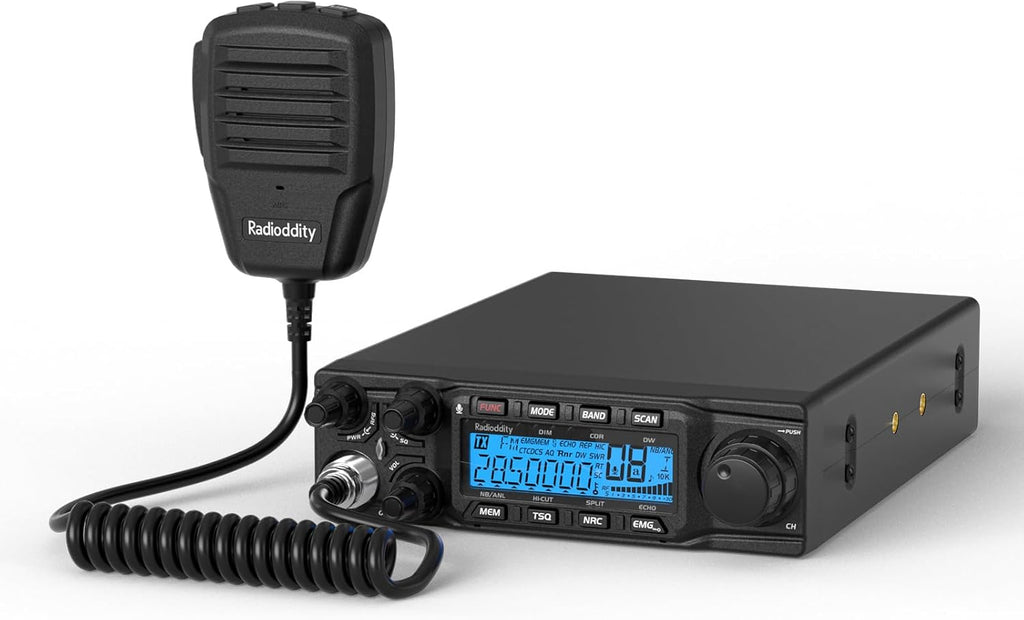

Radioddity QT80 10 Meter Mobile Ham Radio SSB/AM/FM/PA 80W, CTCSS/DCS | RX/TX Noise Reduction Amateur Transceiver, Large LCD Display, ASQ SWR High Alert for Trucks, Road Trips, Vehicle

US284.05

US284.05 US284.05

Radioddity QT80 10 Meter Mobile Ham Radio SSB/AM/FM/PA 80W, CTCSS/DCS | RX/TX Noise Reduction Amateur Transceiver, Large LCD Display, ASQ SWR High Alert for Trucks, Road Trips, Vehicle

US284.05

US284.05 US284.05

Dual Watch

Name: Radioddity QT80 10 Meter Mobile Ham Radio SSB/AM/FM/PA 80W, CTCSS/DCS | RX/TX Noise Reduction Amateur Transceiver, Large LCD Display, ASQ SWR High Alert for Trucks, Road Trips, Vehicle
Brand: THAMBOO
SKU: B0D87B1MT3
Price: 284.05 USD
Availability: InStock

Monitor two channels simultaneously, ensuring you never miss important transmissions while staying connected.

Mic Gain

Customize microphone sensitivity for clear and precise communication, adapting to different environmental conditions.

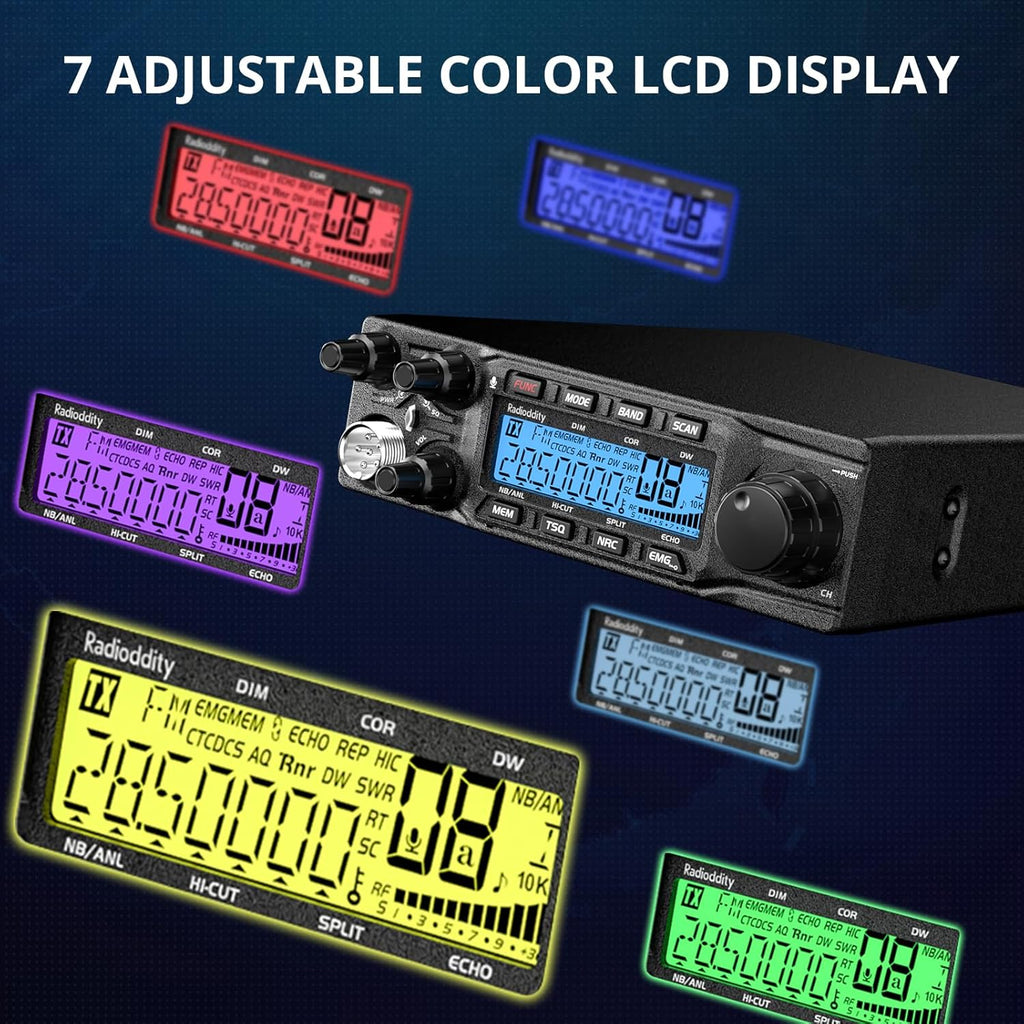

7-Color LCD Display

Enhance your setup with a 7-color LCD display, selecting your preferred color for optimal visibility, personalizing your user interface.

Multi Modulation

Effortlessly toggle between FM, AM, SSB (USB, LSB), and PA modes, offering diverse communication options for various situations.

CTCSS/DCS

Use CTCSS/DCS codes to prevent interference and enhance privacy during group communications, ensuring clear and secure conversations.

SWR High Alert

Receive immediate alerts for high SWR levels, protecting the radio and antenna from potential damage while maintaining optimal performance.

Precision Frequency Tuning

Tune precisely with 7 Frequency Tuning Step options (10Hz/100Hz/1KHz/5KHz/10KHz/100KHz/1MHz), enabling accurate adjustments for clear communication.

RF Gain

To mitigate noise, the RF gain functions as a sensitivity filter, diminishing noise in the receiver while maintaining reception power.

Why does my radio receive perfectly but fail to transmit when I press the PTT button?

Transmitting draws ~12A. Ensure you use a 13.8V, 15A+ power supply; voltage drops stop transmission. Check the screen for low voltage or High SWR errors. Verify the mic is firmly plugged in. Let Radioddity support team know if issues persist.
Why does my power meter show a low output that doesn't reach the stated wattage?

In SSB/AM mode, power fluctuates dynamically with your voice. Standard average-reading meters cannot accurately measure this Peak Envelope Power (PEP). To correctly test SSB/AM power, you must use a professional power meter supports PEP measurement.
Why won't my radio go into Boot Mode for a firmware update?

This is usually a PC communication or operation issue. Ensure the programming cable driver is installed. Double-check the manual's button sequence. Still stuck? Send a short video of your steps via Amazon for fast, precise support.

Specifications

Frequency Range	28.000-29.700MHz (Programmable)
Modulation	FM/AM/USB/LSB
Channel	40 channels (programmable) in each band
Power Output	AM: 80W(PEP) / FM:50W / SSB: 80W(PEP)
Frequency Step	10Hz,100Hz,1KHz,5KHz,10KHz,100KHz,1MHz
Frequency Tolerance	±5.0 ppm
Temperature Range	-20℃~ +50℃
Input Voltage	13.8V DC

Antenna Connector	UHF, SO239
Drain	15A (with modulation)
Sensitivity	SSB: 0.25μV for 10dB(S+N)/N AM:1.0μV for 10dB(S+N)/N FM: 1.0μV for 20 dB (S+N)/N (All at greater than 1/2 watt of audio output)
RF Gain Control	45dB adjustable for optimum signal reception
Automatic Gain Control (AGC)	Less than 10dB change in audio output for inputs from 10 to 100,000 microvolt
Squelch	Adjustable; threshold less than 1.0μV Automatic Squelch Control (AM/FM) 1.0μV
Audio Output Power	3 watts into 8 ohms
Built-in Speaker	8 ohms, round

Comparison with Other 10M Radios

	QT80 Buying Options	QT60 Pro Buying Options	QT40 Buying Options	Other 10M Radio Buying Options
Customer Reviews	211	179	160	—
Price	$284.05	$239.99	$169.99	—
Power Output	PEP 80W	PEP 60W	PEP 40W	PEP 40W
SSB	✔	✔	✘	✘
Screen	LCD	LCD	none	none
RX & TX Noise Reduction	✔	✔	✔	✘
CTCSS/DCS	✔	✔	✘	✘
NB filter	✘	✔	✘	✘
Dual Watch	✔	✔	✘	✘

80W High Power: Experience clearer and stronger signals in challenging conditions with our 80W high-power radio. Perfect for amateur radio enthusiasts and professional operators, it guarantees reliable long-distance communication in any environment. FCC ID: T4K-AT6666PRO
Versatile Communication Modes: Seamlessly switch between FM, AM, SSB (USB, LSB), and PA modes to adapt to various communication needs, from casual use to professional applications, catering to various communication scenarios.

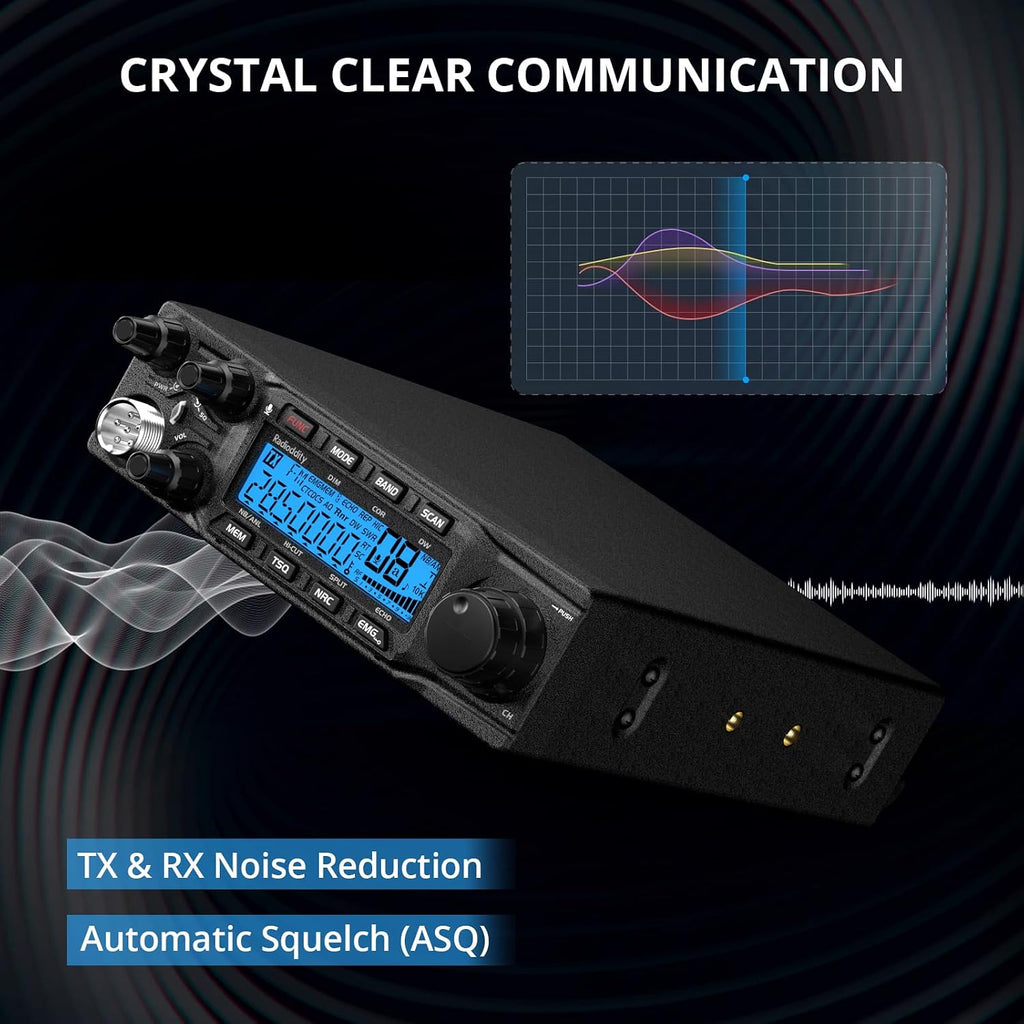

Advanced Noise Reduction: Customize your listening experience with adjustable TX & RX noise reduction. Enjoy crystal-clear audio with minimized background noise and enhanced voice clarity, ensuring smooth and intelligible transmissions every time.
ASQ Function: The Automatic Squelch Control (ASQ) function intelligently filters out unwanted noise and static, providing a cleaner and more enjoyable listening experience. Say goodbye to constant manual adjustments and enjoy hassle-free communication.
7-Color LCD Display: Personalize your interface with a vibrant 7-color LCD display that complements any environment. Choose your preferred color for optimal visibility and a modern touch, enhancing your communication setup.

› See more product details

Brand	Radioddity
Color	multiple
Number of Channels	23
Special Feature	Digital Display, TX & RX Noise Reduction
Frequency Range	28 MHz - 29.7 MHz
Talking Range Maximum	621 mile
Voltage	13.8 volts
Water Resistance Level	Not Water Resistant

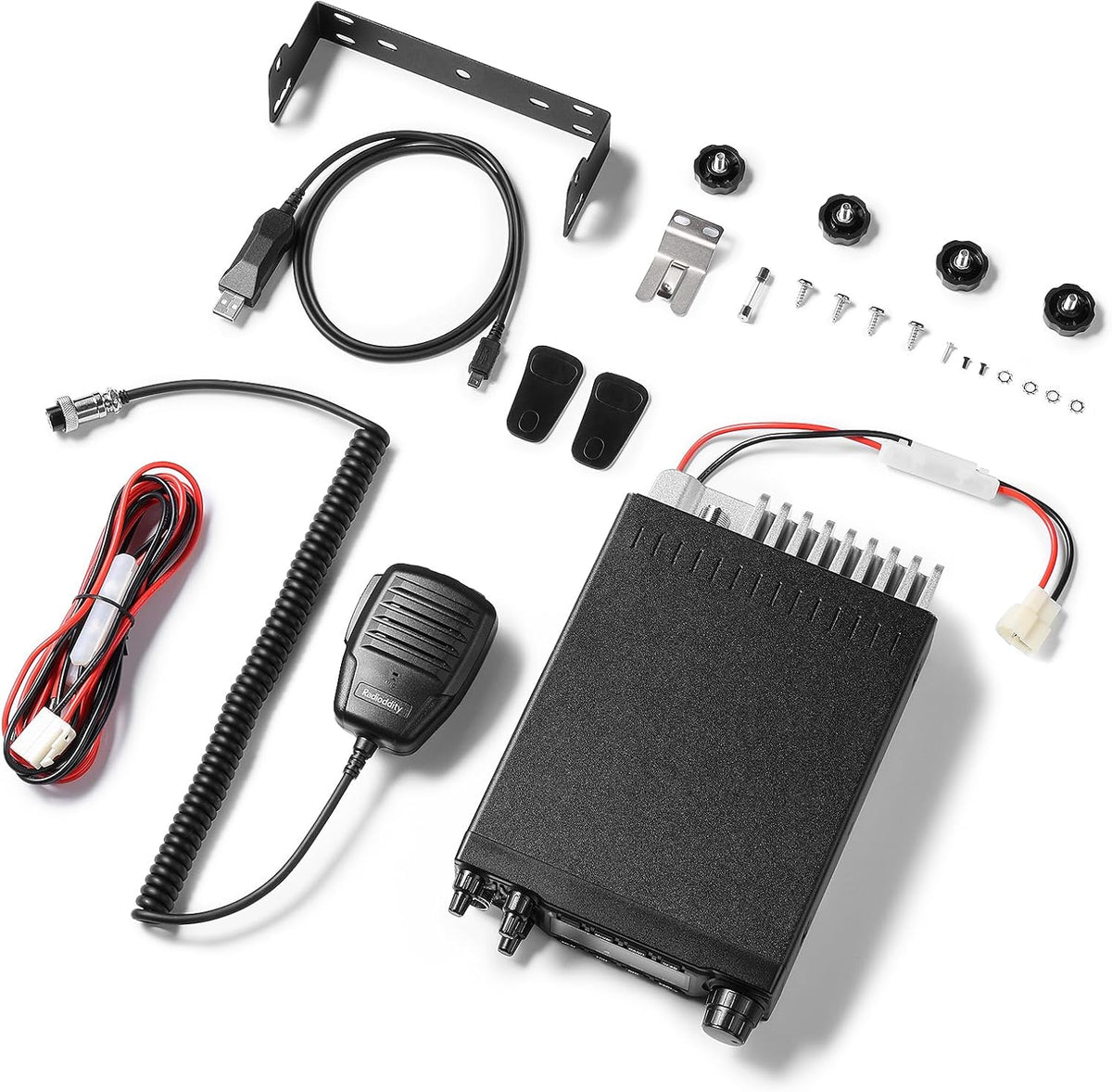

Included Components	1 x QT80 radio, power cable, mounting bracket, microphone, user manual
Compatible Devices	Two-way radios on 28 MHz - 29.7 MHz frequency band, channel 23, and compatible accessories
